Products >> SMT Assembly >> GSM PCB electronic board

  • OEM gsm pcb assembled circuit board

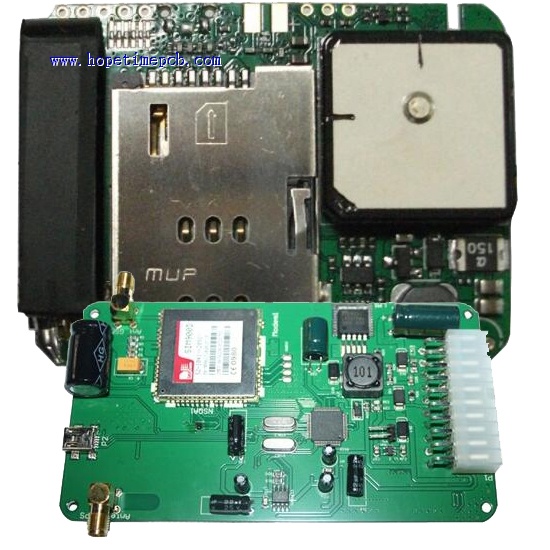

OEM gsm pcb assembled circuit board

OEM gsm pcb assembled circuit board

  • Product No.:20218251796
  • PCB board thickness:1.6MM
  • Layer count:4L
  • PCB material:FR4
  • Copper thickness:1OZ
  • Surface treatment:HASL LF
  • Soldermask:Green
  • silkscreen:White
  • D.K:/
  • D.F:/
  • Min trace/gap:/
  • Online Inquiry

OEM gsm pcb assembled circuit board


PCBA technical Capacity

SMT

1.Position accuracy:20 um

2.Components size:0.4×0.2mm(01005) —130×79mm,Flip-CHIP,QFP,BGA,POP

3.Max. component height:25mm

4.Max. PCB size:680×500mm

5.Min. PCB size:no limited

6.PCB thickness:0.3 to 6mm

7.PCB weight:3KG


Wave-Solder

1.Max. PCB width:450mm

2.Min. PCB width: no limited

3.Component height:Top 120mm/Bot 15mm


Sweat-Solder

1.Metal type :part, whole, inlay, sidestep

2.Metal material:Copper , Aluminum

3.Surface Finish:plating Au, plating sliver , plating Sn

4.Air bladder rate:less than 20%


Press-fit

1.Press range:0-50KN

2.Max. PCB size:800X600mm


Testing

1.ICT,

2.Probe flying,

3.burn-in,

4.function test,

5.temperature cycling
