Full Body Hard Gold also known as Hard Electrolytic Gold,is a layer of gold with hardeners for increased durability, plated over a barrier coat of nickel using an electrolytic process. Hard gold is extremely durable, and so this material is usually applied to high-wear areas, such as edge connector gold fingers and keypads, since its hardness can withstand repeated use; however, due to the high cost of hard gold, and its relatively poor solderability, it is rarely applied to solder-able areas.

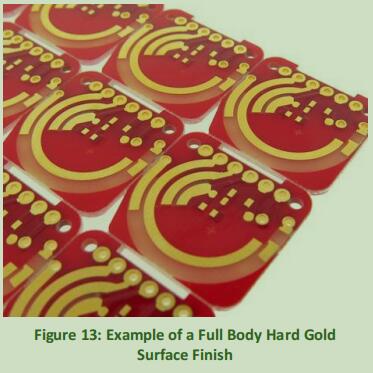

Full Body Hard Gold is a rarely-chosen surface finish, where the full body of the PCB board is plated with hard gold. In order to apply a Full Body Hard Gold surface finish, an electrolytic process using an electric current or an immersion process is needed, depending on the PCB design. Due to the poor solder-ability of hard gold, a very active flux will be required to solder effectively to the hard-gold-plated pads.See below figure 13
Pros
-
Hard, Durable Surface
-
No Lead
-
Long Shelf Life
Cons
-
Very Expensive
-
Extra Processing / Labor Intensive
-
Use of Resist / Tape
-
Plating / Bus Bars Required
-
Demarcation
-
Difficulty with Other Surface Finishes
-
Etching Undercut Leads to Slivering / Flaking
-
Not Solder-Able Above 17 μin
-
Finish Does Not Fully Encapsulate Trace Sidewalls, Except in Finger Areas
