What's the Overall Finished Profile Tolerance?

A surfaces profile is a 3-dimensional tolerance zone outline around a surface plane defined by using basic radii dimensions, coordinate dimensions, angular dimensions. The profile tolerance is a uniform boundary around a board surface where there are elements of the surface generated by offsetting each point forming two tolerance zones. Profile tolerances is what controls a feature's form, size, orientation, and sometimes location with profile elements that are curved lines, straight lines, and areas. We at Hopetimepcb can fabricate a PCB with tolerances listed in Table 1 below.

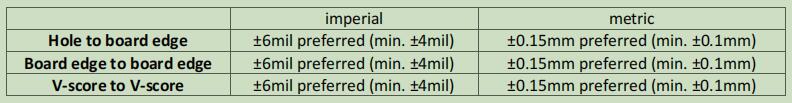

Table 1
